Software contents and default installation directories
   compleat botanica    troubleshooting    installation    Overview

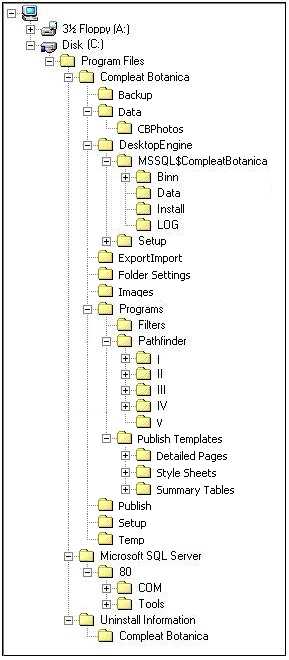

When properly installed, The Compleat Botanica software will use files in several different directories. Here are the details of files and directories used by the software. The snapshot of the directory structure below was taken after an installation to the default location "C:\Program Files\Compleat Botanica".

Directory Contents Files
Compleat Botanica This directory contains files used by the Setup utility. 8 files, 4 Mb
Compleat Botanica\Backup The suggested location for your database backups. CBSample.bak, 56 Mb
Compleat Botanica\Data The suggested location for your active databases. CBSampleDatabaseLog.ldf
CBSampleDatabaseData.mdf
Compleat Botanica\Data\CBPhotos Photographs linked to the Sample database. 97 files, 15 Mb
Compleat Botanica\DesktopEngine This directory and its sub-directories contain the Microsoft SQL Server Desktop Engine files specific to The Compleat Botanica. 77 files, 65 Mb
Compleat Botanica\ExportImport Default location for exported data files. CompleatBotanicaSchema.xsd
Compleat Botanica\Folder Settings HTML template to allow Windows Explorer to preview documents 8 files, 45 Kb
Compleat Botanica\Images Logos used by HTML files located in the root directory 2 files, 9 Kb
Compleat Botanica\Programs The program files, utilities, and DLL�s for The Compleat Botanica 18 files, 8 Mb
Compleat Botanica\Program\Filters Your customized filters, report styles, and specimen tag layout definitions. 66 files after default installation, more after you�ve made customizations.
Compleat Botanica\Program\Pathfinder The HTML documents shown in the Pathfinder View. approximately 350 documents (plus bitmap files), 13 Mb
Compleat Botanica\Program\Publish Templates HTML templates used by the Publish process
Compleat Botanica\Program\Publish Templates\Detailed Pages HTML templates for publishing detailed pages
Compleat Botanica\Program\Publish Templates\Style Sheets HTML style sheets for font size, color and fonts faces.
Compleat Botanica\Program\Publish Templates\Summary Tables HTML templates for publishing summary pages
Compleat Botanica\Publish Default location for pages created by the Publish process
Compleat Botanica\Setup Setup program for the Compleat Botanica. 11 files, 2 Mb
Compleat Botanica\Temp Default location for temporary files automatically created and deleted by the software.
Microsoft SQL Server Files and directories for the Microsoft SQL Server Desktop Engine common to all installations (not specific to The Compleat Botanica). 71 files, 18 Mb
Uninstall Information\Compleat Botanica Utility to uninstall The Compleat Botanica

.........................

Remove.exe

See also

   Overview of the two-step installation process

   Installation of The Compleat Botanica software

   Installation overview
